تفاصيل المنتج:
شروط الدفع والشحن:
|
| Type: | gasoline engine winch | Rated load: | 20KN |
|---|---|---|---|
| Weight: | 180kg | Application: | Transmission line erection |
| Usage: | Cable Take Up and Stringing | Speed: | 13.3-24.3m/min |
| تسليط الضوء: | cable winch puller,cable pulling winch machine,cable pulling winch machine |
||

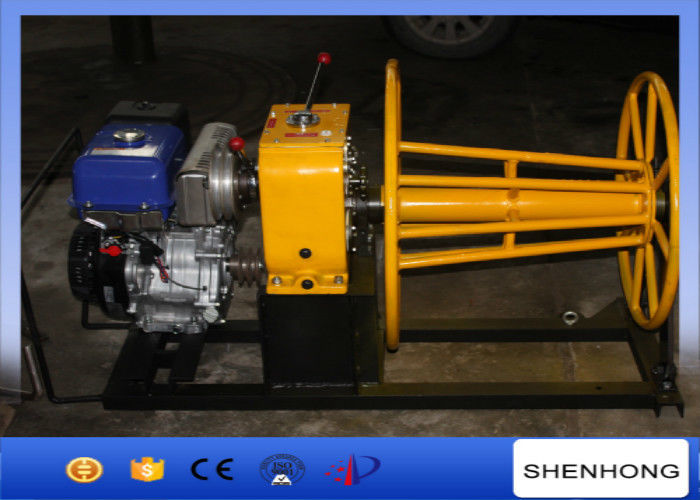

Yamaha Gas Powered Capstan Winch 3 Ton for Cable Take Up / Stringing
Winch Introduction
A winch is a mechanical device that is used to pull in (wind up) or let out (wind out) or otherwise adjust the "tension" of a rope or wire rope (also called "cable" or "wire cable"). In its simplest form it consists of a spool and attached crank. In larger forms, winches stand at the heart of machines as diverse as tow trucks, steam shovels and elevators. The spool can also be called the winch drum. More elaborate designs have gear assemblies and can be powered by electric, hydraulic, pneumatic or internal combustion drives. Some may include a solenoid brake and/or a mechanical brake or ratchet and pawl device that prevents it from unwinding unless the pawl is retracted.
Application
Take up conductor,cable and stringing conductor,cable.
Features
1. Small size & compact structure. The machine is now supported by gasoline engine, diesel engine, electric or imported gasoline engine.
2. Light weight. For example, the weight of 5 ton gasoline engine powered winch is 88 kgs. Equipped with diesel engine or motor, the winch is 160 kg. Equipped with imported gasoline engine, the winch is only 82 kg, which is very convenient transported. They are especially suitable for line construction in water area and mountain. String machine equipped with a small capstan, can also be used for a vertical rod, wire. One machine with two function in the wildfield helps to reduce crop losses.
3. High efficiency. It reduces the labor intensity, improves working efficiency with less operators and convenient field command.
4. Safe and reliable. The machine has the interlocking brake device, accurate positioning, excellent braking performance , flexible usage, safety and trust.
5. Widely used. According to customers’ response and field investigation, this machine has wide usage, such as rod up, a vertical rod, the pull rod, line release, line reel, the bridge plate traction, lifting and other purposes.
Technical Data
| Order Number | Model | Rated Load(KN) | Speed(m/min) | Engine | Weight(kg) |
| 10255 | XFSJ-20 | 20 | 13.3-24.3 | Gasoline/Diesel | 180 |
| 10256 | YSFJ-20 | 20 | 13.3-24.3 | Gasoline/Diesel | 200 |
Engine
Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.
