تفاصيل المنتج
Place of Origin: Jiangsu, China
اسم العلامة التجارية: SHENHONG
إصدار الشهادات: ISO
Model Number: LZH
شروط الدفع والشحن
Minimum Order Quantity: 2 sets
الأسعار: قابل للتفاوض
Packaging Details: carton
Delivery Time: 7 days after payment
Supply Ability: 500 set/sets per month
Sheave Number: |
1,2,3 |
Rated Load(KN): |
5-80 |
Weight(KG): |
1.2-6.5 |
Application of wire rope diameter(mm): |
5.7-18.5 |
Usage: |
Hoisting |
Application: |
Power condtruction |
Sheave Number: |
1,2,3 |
Rated Load(KN): |
5-80 |
Weight(KG): |
1.2-6.5 |
Application of wire rope diameter(mm): |
5.7-18.5 |
Usage: |
Hoisting |
Application: |
Power condtruction |

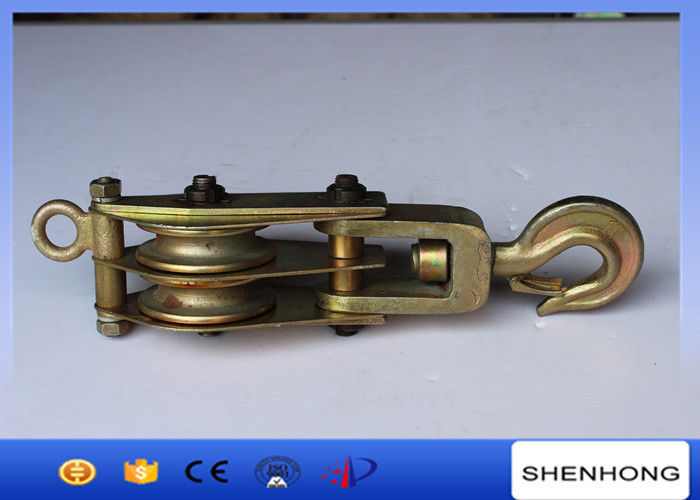

Tower Erection Tools Steel Wire Rope Lifting Pulley For Cable Pulling During Tower Erection
Application
Aluminum Alloy Wire Rope Lifting Pulley is used for lifting.It can be used in single, it also can be used as a block.
Characteristics
1. Material: Aluminum alloy
2. The type of Single wheel is open hook type.
3. The type of double wheel or third wheel is closed loop type.
3. It is made of aluminum alloy
4. Light weight
Technical Data
| Model Number |
Rated Load(KN) |
Sheave Number |
Application of wire rope diameter(mm) |
Weight(KG) |
| LZH5-1K | 5 | 1 | 5.7 | 1.2 |
| LZH10-1K | 10 | 1 | 7.7 | 1.5 |
| LZH10-2 | 10 | 2 | 5.7 | 1.75 |
| LZH10-3 | 10 | 3 | 5.7 | 2 |
| LZH15-2 | 15 | 2 | 7.7 | 2 |
| LZH15-3 | 15 | 3 | 12.5 | 2.75 |
| LZH20-1K | 20 | 1 | 11 | 2 |
| LZH20-2 | 20 | 2 | 7.7 | 2.5 |
| LZH20-3 | 20 | 3 | 7.7 | 2.75 |
| LZH30-1K | 30 | 1 | 12.5 | 3.5 |
| LZH30-2 | 30 | 2 | 11 | 4 |
| LZH30-3 | 30 | 3 | 7.7 | 4.2 |
| LZH50-1K | 50 | 1 | 15.5 | 4 |
| LZH50-2 | 50 | 2 | 12.5 | 4.5 |
| LZH50-3 | 50 | 3 | 11 | 4.75 |
| LZH80-1K | 80 | 1 | 18.5 | 6 |
| LZH80-2 | 80 | 2 | 15.5 | 6.5 |
