| Product Name: | Overhead Power Line Stringing Equipment SA-YQ180 Hydraulic Cable Puller | Maximum linepull (kN): | 180 |
|---|---|---|---|
| Continuous linepull (kN): | 150 | Maximum linespeed (km/h): | 5 |
| Bullwheel grooves number: | 9 | Bullwheel bottom of groove diameter(mm): | 630 |
| تسليط الضوء: | ,موصل التوتير المعدات,conductor stringing equipment |
||

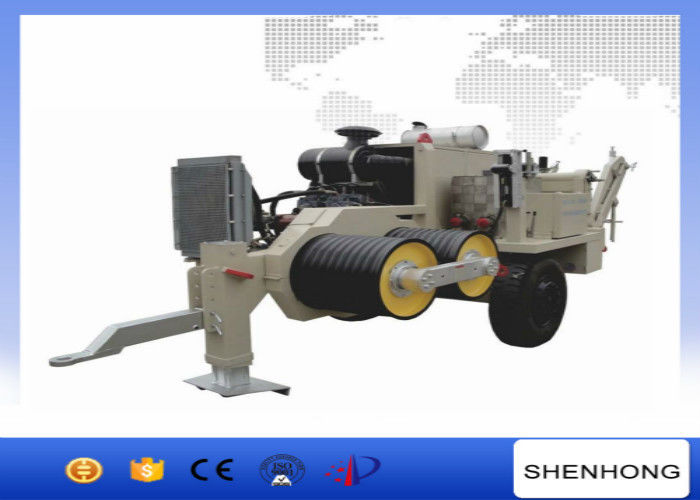

ISO Cable Tensioner Overhead Line Stringing Equipment 630 MM Bullwheel Bottom
Essential parameter
| Maximum linepull (kN) | 180 |
| Continuous linepull (kN) | 150 |
| Maximum linespeed (km/h) | 5 |
| Bullwheel bottom of groove diameter(mm) | Φ630 |
| Bullwheel grooves number | 9 |
| Maximum suitable steelrope diameter (mm) | Φ24 |
| Maximum through connector diameter (mm) | Φ63 |
| Engine power /speed (kW/rpm) | 209/2100 |
| Dimensions (mm) |
5500×2170×2570 |
| Weight (kg) | 7500 |
﹒Feature :
Main component :
