10T - 15T Cable Drum Jackshydraulic Conductor Reel Drum Stand Brake Force 45Rpm Speed

نوعية جيدة أدوات البناء الخط العلوي للمبيعات
نوعية جيدة أدوات البناء الخط العلوي للمبيعات
The Tools for underground cable pulling project works very well.I am going to introduce to other companies in local.

—— Mr. Ara Minasian

I would like to tell you that I have already begun to distribute the catalog on the Vietnam companies to transfer electricity and all the companies

—— Hung Do Bui

We will try very hard to build the market for your products in Kenya.

—— Mr. John Gachagua

ابن دردش الآن

10T - 15T Cable Drum Jackshydraulic Conductor Reel Drum Stand Brake Force 45Rpm Speed

الصين 10T - 15T Cable Drum Jackshydraulic Conductor Reel Drum Stand Brake Force 45Rpm Speed المزود
10T - 15T Cable Drum Jackshydraulic Conductor Reel Drum Stand Brake Force 45Rpm Speed المزود 10T - 15T Cable Drum Jackshydraulic Conductor Reel Drum Stand Brake Force 45Rpm Speed المزود

صورة كبيرة :  10T - 15T Cable Drum Jackshydraulic Conductor Reel Drum Stand Brake Force 45Rpm Speed

تفاصيل المنتج:

Place of Origin: Jiangsu,China
اسم العلامة التجارية: shenhong
إصدار الشهادات: CE,BV,ISO
Model Number: SIYZ

شروط الدفع والشحن:

Minimum Order Quantity: 1 set
الأسعار: negotiation
Packaging Details: plywood case
Delivery Time: ten days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Month
Contact Now
مفصلة وصف المنتج
Coil diameter: 2000-3800mm Coil width: 1700-1950mm
Max weight: 10-15T Max working torque: 3300-4500N.m
Max speed: 45rpm Axle diameter: 94-119mm
Weight: 597-789kg Length of hydraulic tube: 15-20m

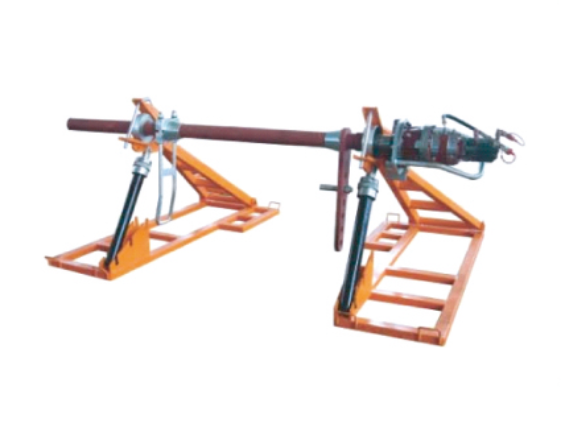

10T - 15T Cable Drum Jackshydraulic Conductor Reel Drum Stand Brake Force 45Rpm Speed

Application
It is applicable to the placement of the cable tray, with hydraulic lifting.

Features
It is applicable to be as the support of large cable reel in laying cables in the city.
It is easy to move with the trundles in the bottom.
It can be equipped with a braking device, using the foot brake.

Notes: Connect with hydraulic tensioner or hydraulic puller tensioner through quick coupling.

Technical data of 10-15T Hydraulic conductor reel drum stand 3300-4500N.m brake force 45rpm speed

ModelSIYZ10SIYZ15
Applicable reelDiameter of coil(mm)Φ2000-3000Φ2000-3800
Width of coil(mm)≤1700≤1950
Diameter of axle hole(mm)Φ125-130
Maximum weight(kg)1000015000
Max working torque(N.m)33004500
Max speed(rpm)4545
Axle diameter(mm)Φ94Φ119
Weight(kg)597789
Length of hydraulic tube(m)1520

10T - 15T Cable Drum Jackshydraulic Conductor Reel Drum Stand Brake Force 45Rpm Speed
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.

Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
