SIPZ Series Integrated Cable Drum Jacks With Disc Tension Brake

نوعية جيدة أدوات البناء الخط العلوي للمبيعات
نوعية جيدة أدوات البناء الخط العلوي للمبيعات
The Tools for underground cable pulling project works very well.I am going to introduce to other companies in local.

—— Mr. Ara Minasian

I would like to tell you that I have already begun to distribute the catalog on the Vietnam companies to transfer electricity and all the companies

—— Hung Do Bui

We will try very hard to build the market for your products in Kenya.

—— Mr. John Gachagua

ابن دردش الآن

SIPZ Series Integrated Cable Drum Jacks With Disc Tension Brake

الصين SIPZ Series Integrated Cable Drum Jacks With Disc Tension Brake المزود
SIPZ Series Integrated Cable Drum Jacks With Disc Tension Brake المزود SIPZ Series Integrated Cable Drum Jacks With Disc Tension Brake المزود

صورة كبيرة :  SIPZ Series Integrated Cable Drum Jacks With Disc Tension Brake

تفاصيل المنتج:

Place of Origin: Jiangsu,China
اسم العلامة التجارية: shenhong
إصدار الشهادات: BV,CE,ISO
Model Number: SIPZ

شروط الدفع والشحن:

Minimum Order Quantity: 1 set
الأسعار: negotiation
Packaging Details: plywood case
Delivery Time: ten days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Month
Contact Now
مفصلة وصف المنتج
Application: construction Diameter of coil: 900-2500mm
Max width of coil: 1350-1700mm Maximum weight: 3000-7000kg
Brake torque: 1000-2000N.m Linespeed: 80m/min
Weight: 200-480kg Used: spport reel

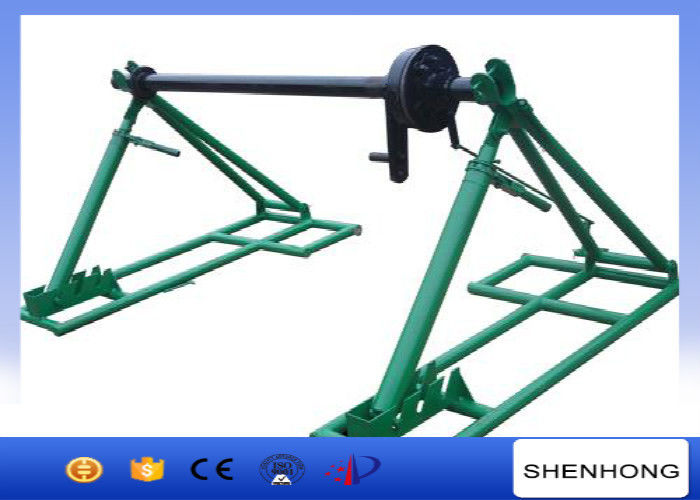

SIPZ series integrated cable reel drum stand with disc tension brake



Application

It is used to support reel in tension releasing wire or mechanically linepulling wire or machanically linepulling wire and to brake the reel. It is convenient transportation because it can be disassembled into 3 pieces.



Notes

SIPZ-7 is double disc brake.



Technical data of SIPZ series integrated cable reel drum stand with disc tension brake

Model SIPZ3A SIPZ5A SIPZ-7
Applicable reel Diameter of coil(mm) Φ900-1600 Φ1600-2400 Φ1800-2500
Width of coil(mm) ≤1350 ≤1350 ≤1700
Diameter of axle hole(mm) Φ65-100 Φ65-100 Φ120
Maximum weight(kg) 3000 5000 7000
Brake torque(N.m) 1000 1000 2000
Linespeed(m/min) 80 80 80
Weight(kg) 200 215 480



Shipment

1. The machine will be shipped in container

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.



Payment

1. We accept T/T and L/C.

2. Please send swift copy of T/T if you arrange payment by T/T

3. Please send us the L/C draft to us before issue L/C.
