| Type: | Hydraulic pump | Useage: | Provide power |
|---|---|---|---|
| Rated Pressure(Mpa): | 80 | Rated Flow(high): | 1.6-2.05L/min |
| Rated Flow(low): | 8-11.02L/min | Max pressure(Mpa): | 80 |
| تسليط الضوء: | ,,hydraulic lug crimping tool |
||

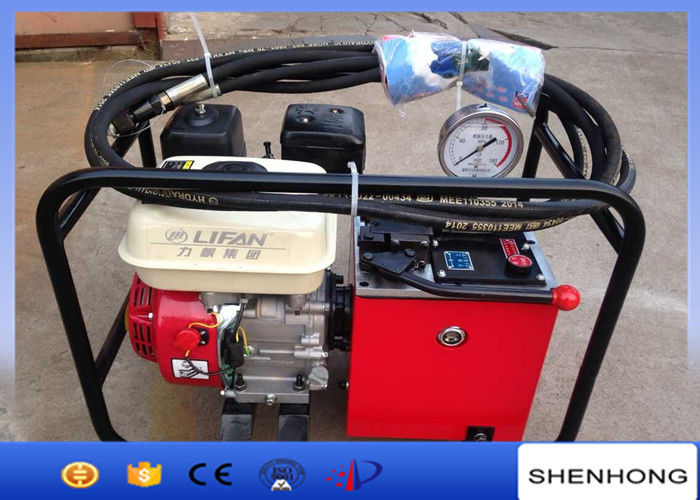

High Efficiency Overhead Line Construction Tools Two Stage Hydraulic Pump
Application
It is used to provide pressurized oil to compatible tools: Cylinder, Crimping Head, Cutting Head, Busbar punching bending cutting tools, pipe bender etc.
Features
1. Safe and Reliable
2. Light in weight
3. Convenient and flexible
5. Save time and labor
6. High efficiency
7. Durable
Technical Data
| Model | Engine | Power | Rated Pressure(Mpa) | Max Pressure(Mpa) | Rated Flow(L/min) | Weight | |
| High Pressure | Low Pressure | ||||||
| YA-80-03 | Honda GX160 | 5.5HP | 80 | 94 | 2.05 | 11.02 | 56KG |
| YA-80-03 | Diesel Engine | 4.0HP | 80 | 94 | 2.05 | 11.02 | 65KG |
| YA-80-03 | Electric Engine | 3.0KW | 80 | 94 | 1.60 | 8.00 | 45KG |
Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.
