| Application: | construction | Cutting force: | 20ton |
|---|---|---|---|
| Punching force: | 31T | Dimension: | 700*700*1100mm |
| Weight: | 170kg | Package: | wooden case |
| تسليط الضوء: | ,,hydraulic compression tool |
||

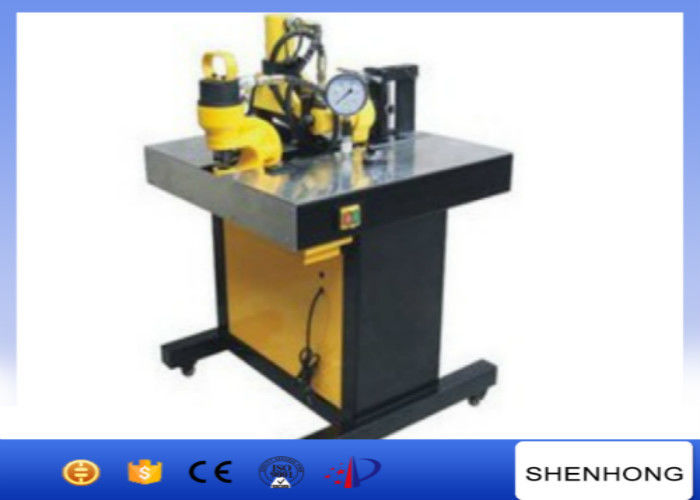

Multi-functional DHY-150 hydraulic busbar punching cutting bending machine
Application
It is suitable for the site construction in the large workshop and transmission and distribution engineering construction site, ect.. Each function has a calibration instructions, it can observe the work point of view to ensure the construction quality of the user. This machine is equipped with three functions that punching, cutting and bending, It is easy to operate with optional foot switch and line switch. Electric pump adopt aluminum alloy shell motor, so it has light weight and low noise.
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment. All products will 100% test before delivery to ensure the quality.
Technical data of Multi-functional DHY-150 hydraulic busbar punching cutting bending machine
| Name | Multi-functional hydraulic busbar punching cutting bending machine DHY-150 |
| Functions | Three function:cutting, punching, bending |
| Dimension | 700mm(L)*700mm(W)*1100mm(H) |
| Input voltage | Single phase 50Hz,220V |
| Rating oil pressure | 700kg/cm2 |
| Cutting force | 20T |
| Cutting range | 150mm(Width)*12mm(Thickness) |
| Punching force | 31T |
| Punching range | Impact(Φ7,Φ9,Φ10.5,Φ13.8,Φ17,Φ20.5) |
| Distance from hole to sheet side | 95mm |
| Weight | 170kg |
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
